Benefits and Features

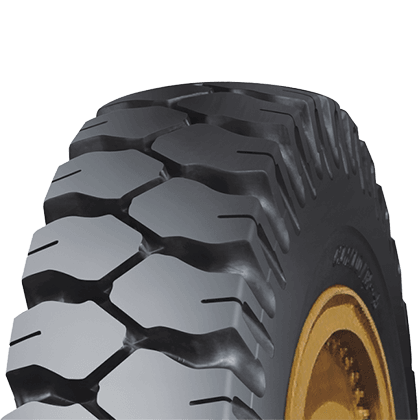

Aggressive lug design with large blocks at tread center provides excellent traction and braking on rough roads with mud or gravel and is self-cleaning for ease of maintenance
Applicable in mining, logging, construction or rock and quarry operations with some very short on high-way use possible
Special tread compounds resist chipping and chunking in rugged off-road conditions
Size | LR/PR | Service index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Max. Load Capacity at Cold Inflation Pressure | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Single | Dual | |||||||||||||
(kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
12.00R24 | L/20 | 160/157C | 32.0 | 8.5 | 1238 | 315 | 4500 | 9920 | 900 | 131 | 4125 | 9090 | 900 | 131 |
325/95R24 | M/22 | 162/160D | 32.0 | 9.00 | 1228 | 325 | 4750 | 10470 | 850 | 123 | 4500 | 9920 | 850 | 123 |
*Reserves the rights of final interpretation and modification
